Tandem-Axle Single-Ram Low Profile Dump

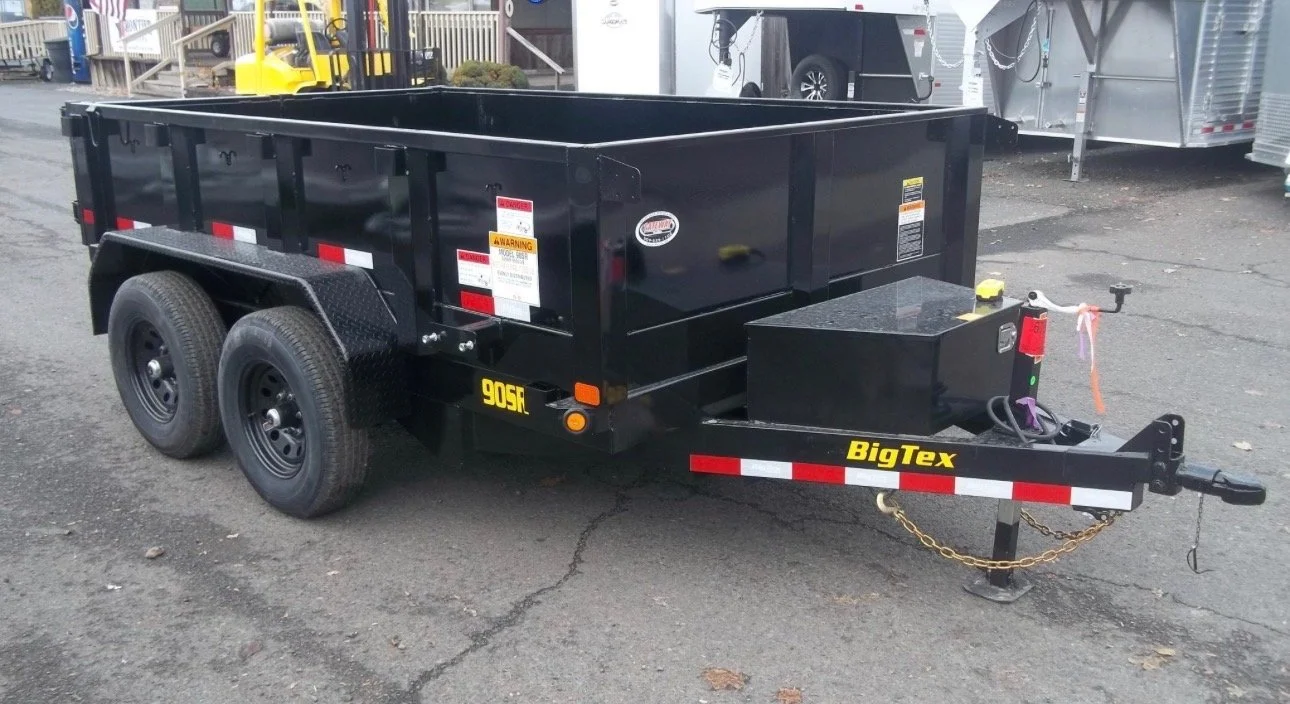

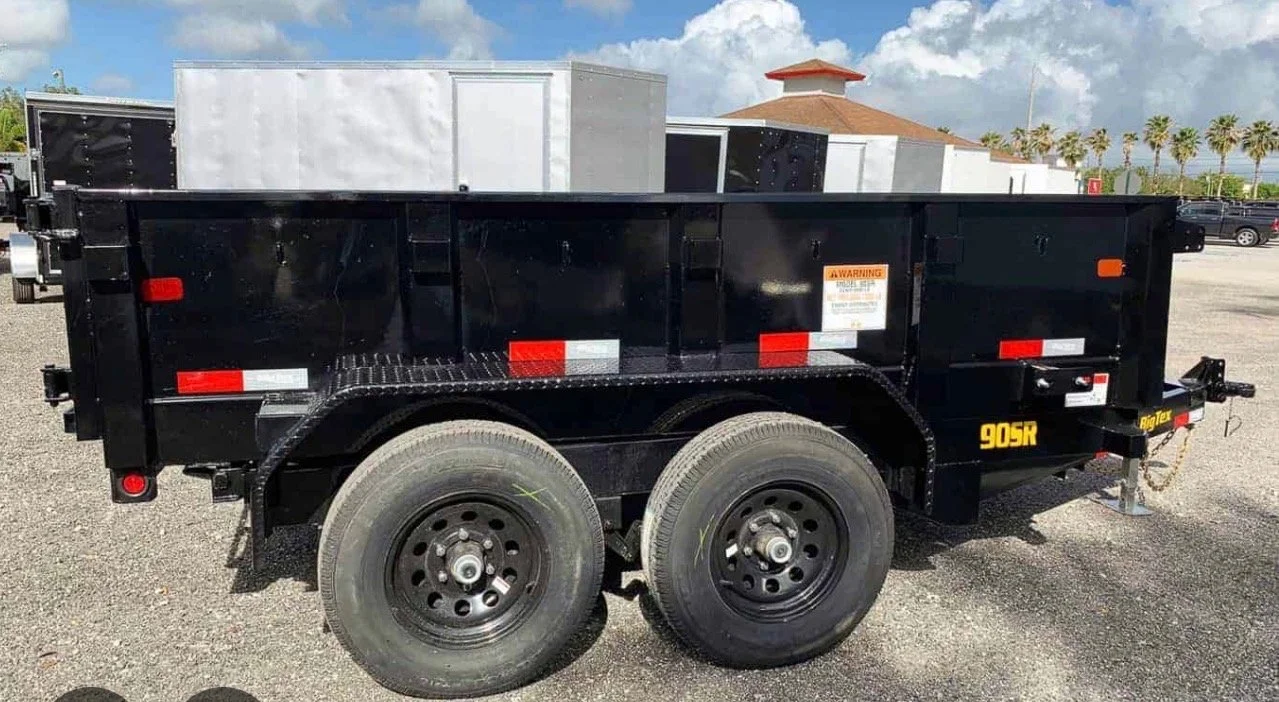

Big Tex 90SR, Tandem-Axle Single-Ram Dump

Customers can include an additional fee of $100 per ton for disposal at the dump site when we are transporting waste there.

Clean outs can also be arranged upon request.

Trailer Specifications

Model: Big Tex 90SR, tandem-axle single-ram dump

72" (6') wide, available in 10' and 12' lengths

GVWR 9,990 lb; empty weight about 2,990 lb; payload capacity around 7,000 lb

Two 5,200 lb cambered axles with forward self-adjusting electric brakes and multi-leaf slipper-spring suspension

6" x 2" rectangular tubing frame with 6" channel tongue and 12-gauge smooth steel floor

20" tall, 12-gauge steel sides with a 2" x 2" square-tubing top rail

Self-contained single-cylinder hydraulic hoist with power up/power down

Double rear doors; optional 6.5' slide-in ramp package

Four 1/2" D-rings, lockable pump and battery box, 12V deep-cycle battery with onboard charger, LED lighting, and complete breakaway kit

ST225/75 R-15 Load Range D radial tires, 6-lug
