Heavy-Duty High-Wall Dump

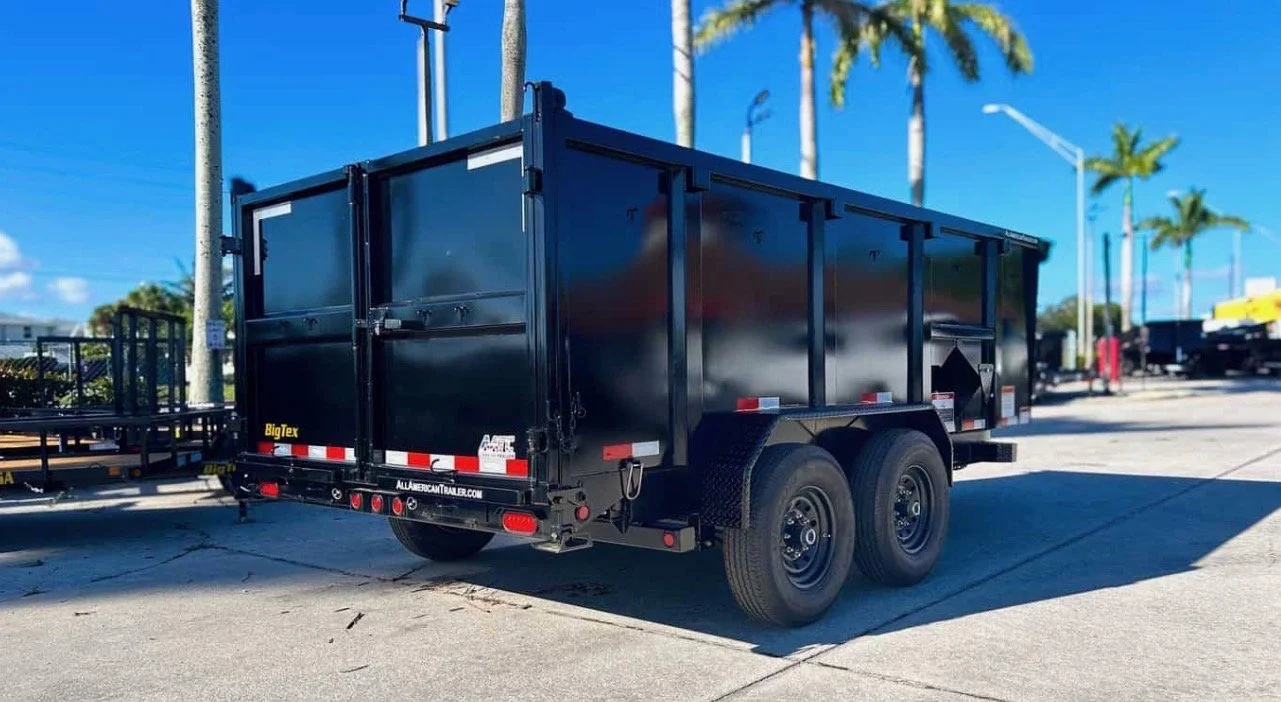

Big Tex 14LP (heavy-duty -high wall dump), Tandem Axle

Customers can include an additional fee of $100 per ton for disposal at the dump site when we are transporting waste there.

Clean outs can also be arranged upon request.

Trailer Specifications

GVWR 14,000 lb; empty weight roughly 4,180 lb, leaving about 9,820 lb of cargo capacity

Two 7,000 lb cambered axles with electric brakes on both axles and quick-lube hubs

Bed size: 83" wide, available in 14' or 16' lengths

28" deck height with an 8" I-beam frame and integrated tongue

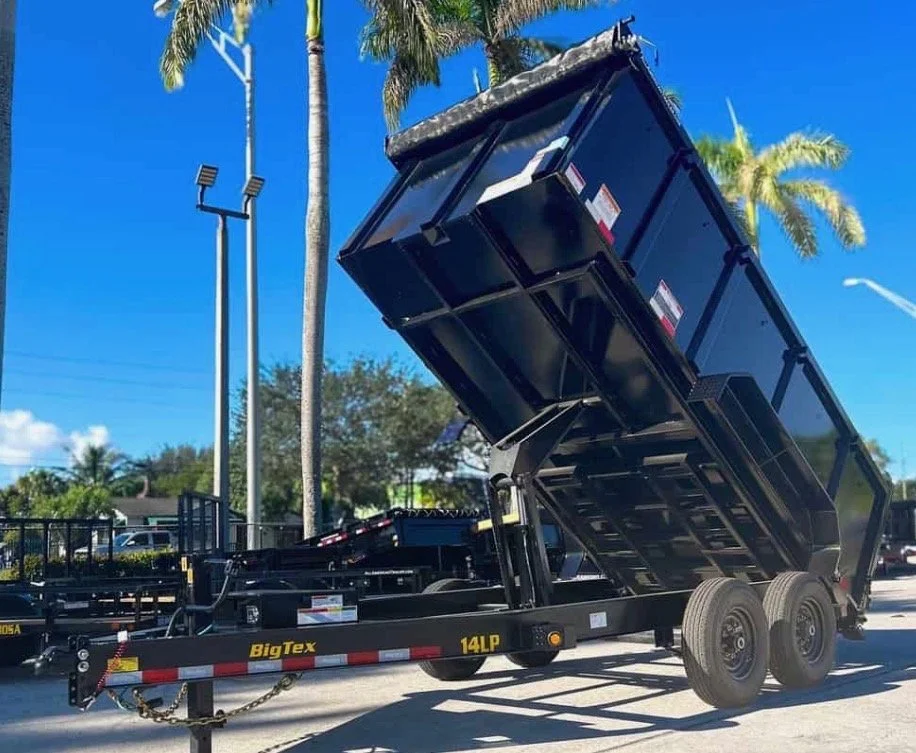

Self-contained electric/hydraulic scissor hoist, with around a 45-degree dump angle

10-gauge steel floor with 24" tall steel sides (shown here with 4-ft side extensions)

Combo rear gate (barn doors plus spreader gate) and a fully-formed tarp shroud with roll tarp

Adjustable-height 2-5/16" coupler, lockable tongue-mounted pump and battery box, slide-out skid-loader ramps, welded D-rings, LED lights, and 16" radial tires
